Description

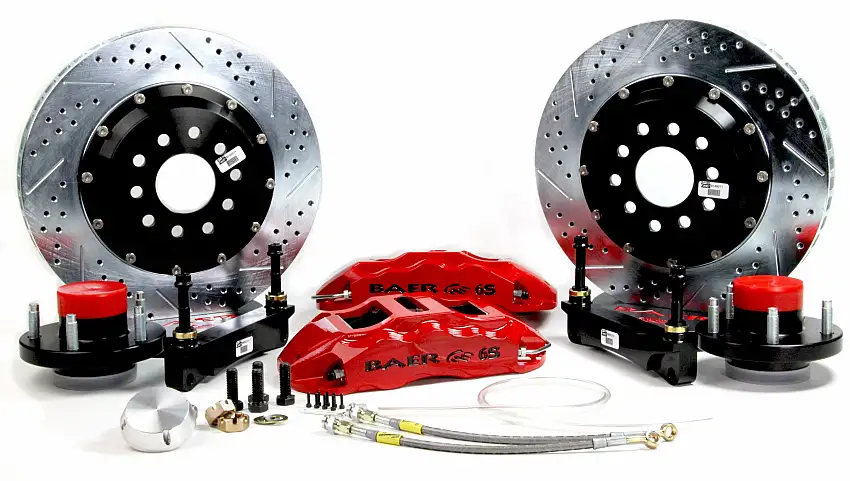

Fits 1970-72 Mopar E-Body (Challenger/Barracuda) w/OE 2-Piston Disc Brake Spindle
Features:
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Specs:
| Applications | Mopar E-Body 70-72 |
|---|---|
| Axle | Front |
| Brand | Baer Brakes |
| Caliper | 6S |
| Caliper Color | Silver |
| Disc Brake Caliper (Front) Piston Quantity | 6 |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | D1247 |
| Disc Brake Rotor (Front) Construction | Vented |
| Disc Brake Rotor (Front) Outside Diameter | 14.000IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/OE 2-Piston Disc Brake Spindle |
| Grade Type | Performance |
| Hose Material | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 18IN |
| Product Line | 14 Inch Extreme+ |
| Product Type | 14 Inch Extreme+ Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 – Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.250IN |
| Rotor Type | 2-Piece |
| Spindle Type | Mopar E-Body 2-Piston Disc (1970-72) |
| Spindles Included | No |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Designed to be used with 70-72 Mopar E-Body 2-piston disc brake spindles, will fit 1966-72 B-Body w/70-72 2-piston disc brake spindle upgrade |
| Template | N085P |
| Title | Extreme+ Brake System Front |
| Wheel Lug/Bolt Pattern | 5×4.50 |
| Wheel Stud Size | 1/2-20″ x 2.25″ |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1970-1972 | Dodge | Challenger | |
| 1970-1972 | Plymouth | Barracuda |
