Description

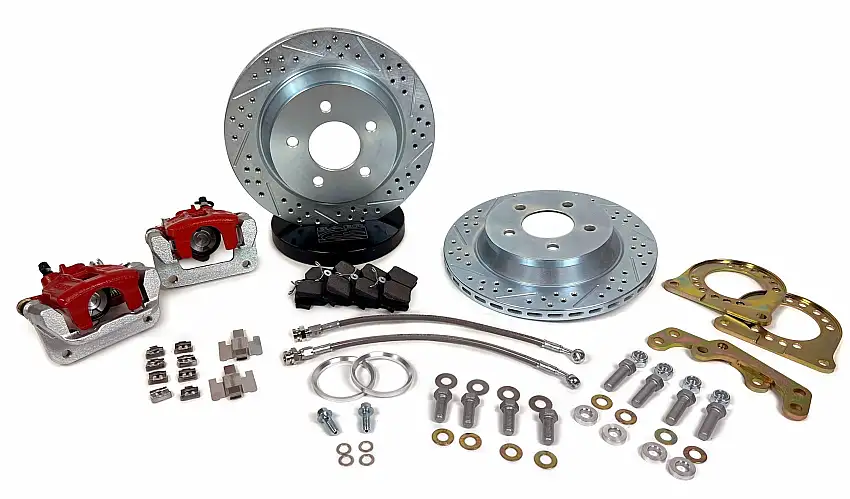

Fits GM 10/12 Bolt (BIH/BOA) Small Car Rear Ends (Staggered Shock Applications)
Features:
- Modern Single-Piston Caliper w/Integral Park Brake
- Red Powder Coated Finish
- Slot, Drilled, Zinc Plated Rotor
- Stainless Braided Brake Hoses
- Uses Common FMSI D0627 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
Specs:
| Axle | Rear |
|---|---|
| Axle Flange | GM Small Pattern 10/12 Bolt Bearing on Axle (Buick/Olds/Pontiac) |
| Axle Flange | GM 10/12 Bolt C-Clip (Small Car Pattern) |
| Box Count | 1 |
| Brand | Baer Brakes |
| Caliper | 1 Classic |
| Caliper Color | Red |
| Disc Brake Caliper (Front) Type | Floating |
| Disc Brake Pad FMSI Number | D0627 |
| Disc Brake Rotor (Front) Construction | Vented |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/Staggered Rear Shocks |
| Hose Material | Stainless Steel |
| Min Wheel Dia (verify using template) | 15IN |
| Product Line | Classic |
| Product Type | 11.65 Inch Classic Rear Brake Kit |
| Prop 65 (C, R or CR) | C |
| Prop 65 – Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 – Short Label | WARNING: Cancer Harm – www.p65warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Diameter | 11.650IN |
| Rotor Surface | SDZ |
| Rotor Thickness | .705IN |
| Surface Type | Slotted, Drilled & Zinc Plated |
| Template | V107I |
| Title | Classic Series Rear Brake Kit |
| Wheel Lug/Bolt Pattern | 5×4.50 |
| Wheel Lug/Bolt Pattern | 5×4.75 |
